The front end of the moving roller set. The front end has a swivel saddle and a drawbar.

• Load capacity: 7 ton

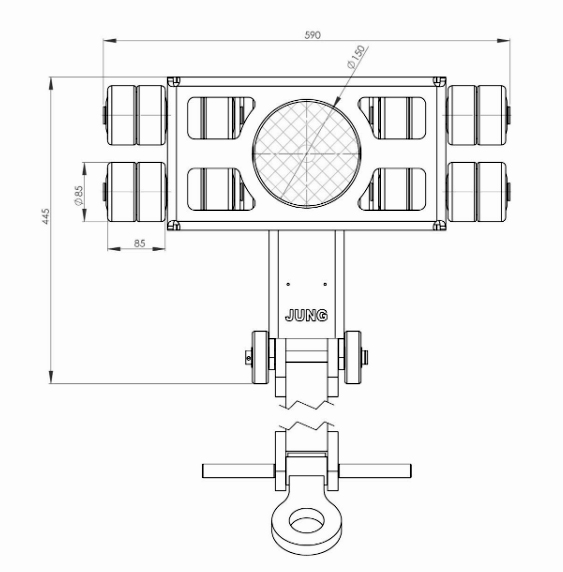

• Exterior dimensions: 445-590 mm

The JL7K front end must be ordered to complete the set.

Advantages of transport trolleys:

• The double roller design results in dramatically easier steering due to reduced friction forces in castors. The much lower friction resistance also causes the trolleys on the rear axis to follow in a truer course.
• You need 30 % less power for steering.
• Higher capacity with professional castors, at same dimension as series K trolleys.
• All transport trolleys are ready for use: the steerable transport trolley is fitted with a ball bearing supported turntable and a handlebar.
• The series K handlebars are now also available with a removable handle, which is also available as a re-fitting set.
• Non-marking support wheels.
• Inspected according to technical regulation ANSI ⁄ ASME (USA)
