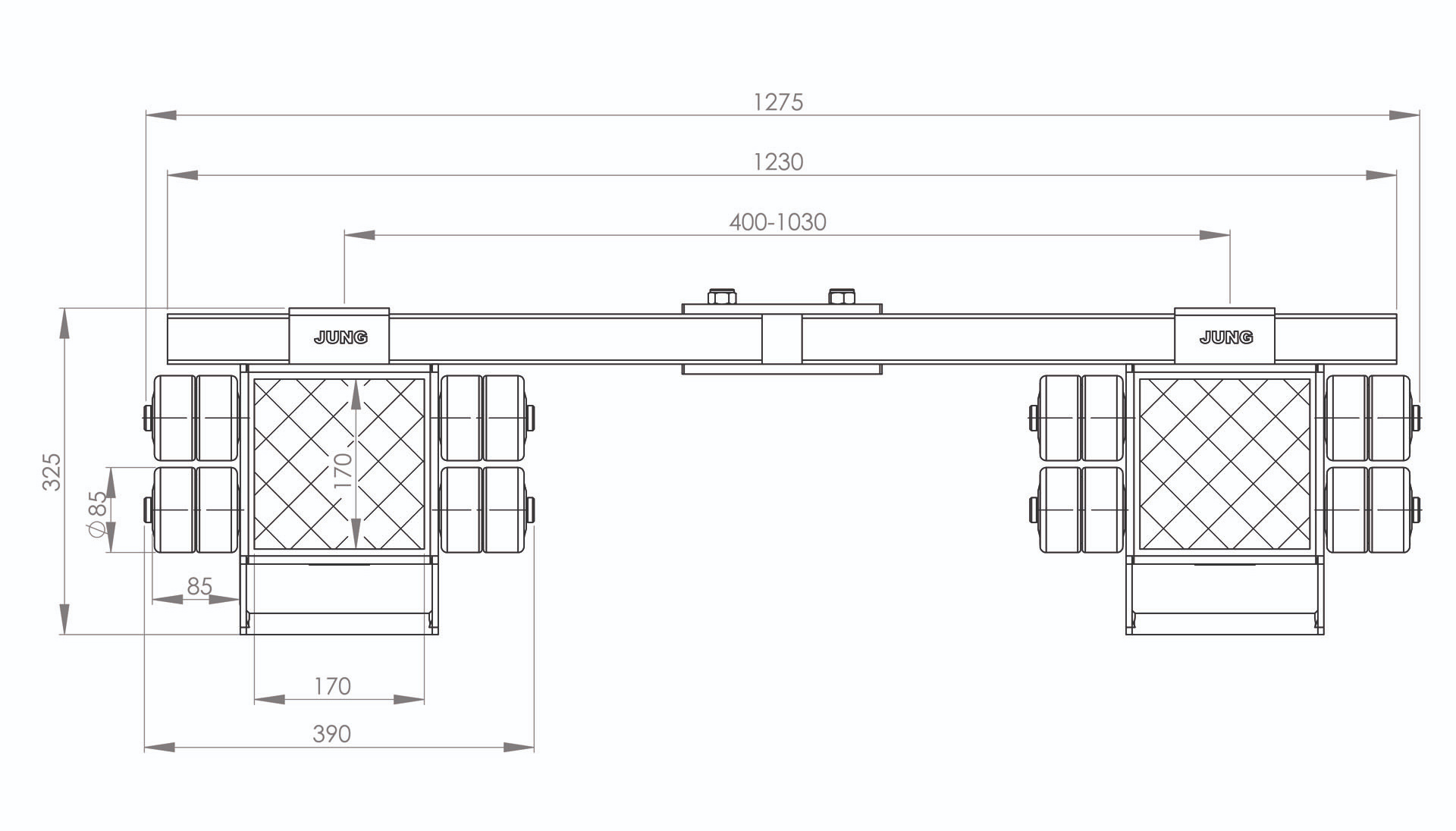

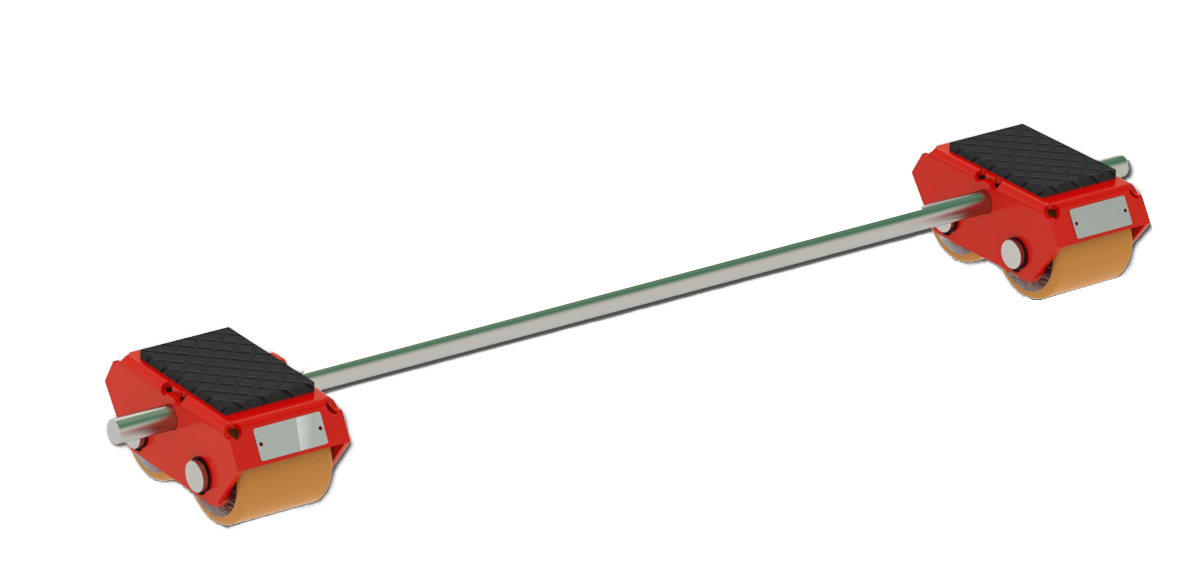

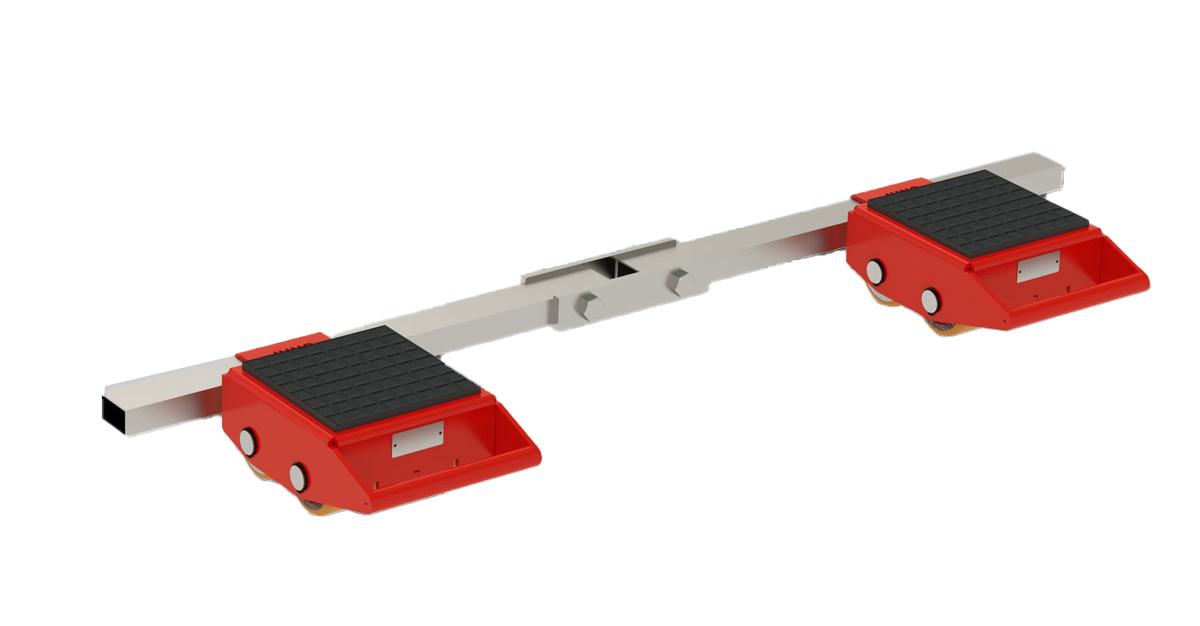

Back end transport trolleys. Equipped with a connecting bar and two straight-running trolleys.

• Load capacity: 14 ton (2 x 7 ton)
• Adjustment range: 400-1030 mm

The JL14K front end must be ordered to complete the set.

Advantages of transport trolleys:

• The double roller design results in dramatically easier steering due to reduced friction forces in castors. The much lower friction resistance also causes the trolleys on the rear axis to follow in a truer course.
• You need 30 % less power for steering.
• Higher capacity with professional castors, at same dimension as series K trolleys.
• The adjustable-width transport trolley consists of two transport units and connecting bar.
• Inspected according to technical regulation ANSI ⁄ ASME (USA)
