Diesel Powered Scissor Lift 9,7 m
GENIE GS3268RT
2673740

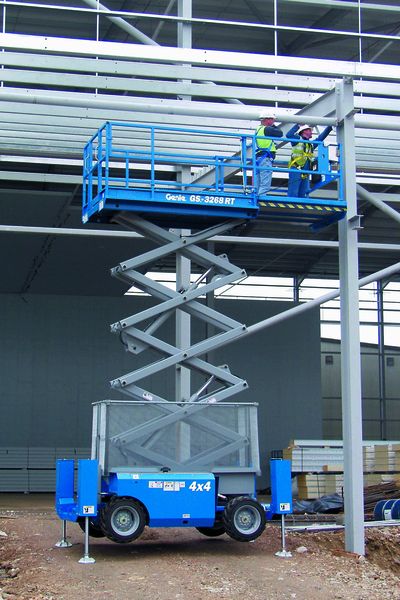

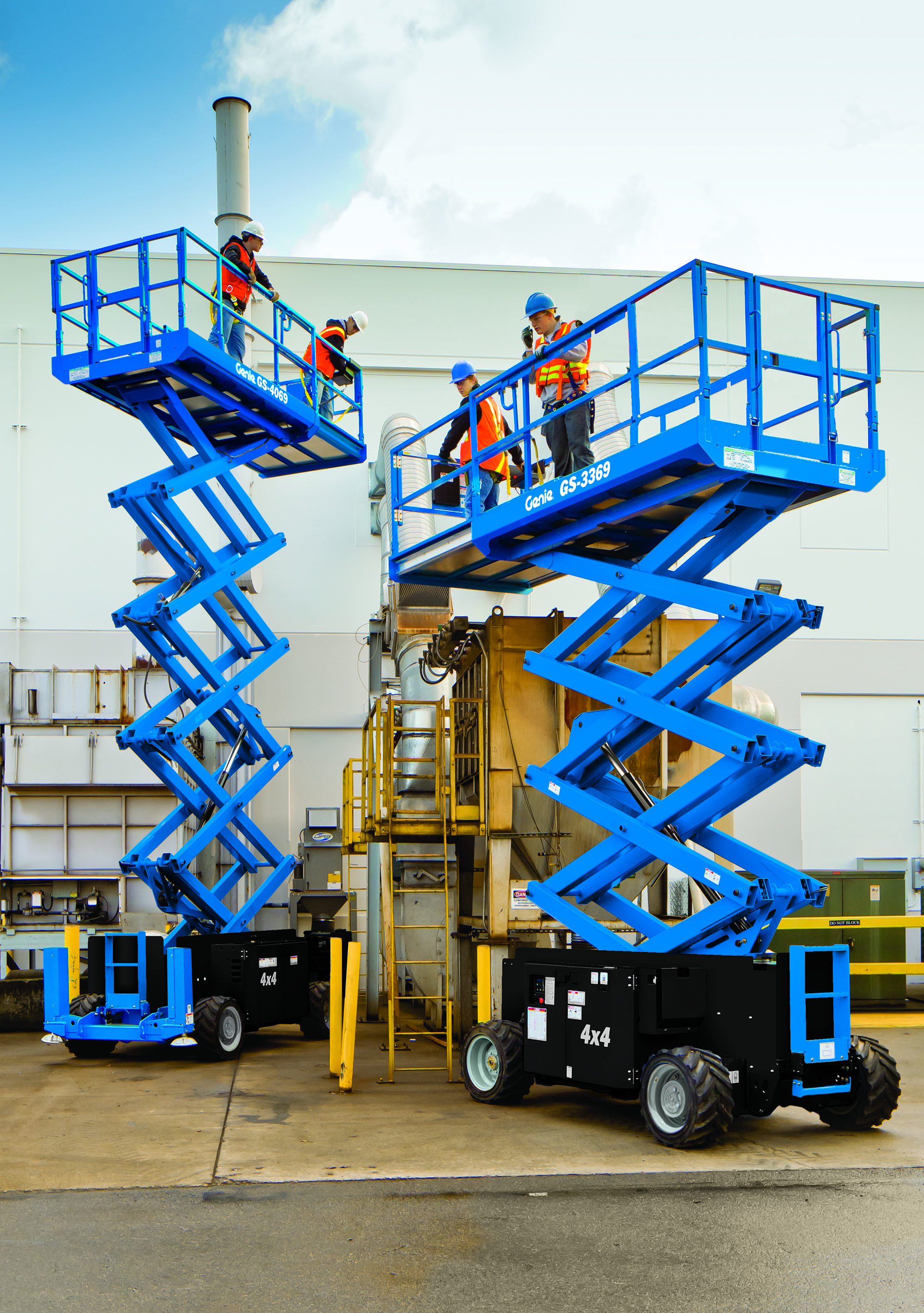

Genie rough terrain scissor lifts are tough, construction-oriented four-wheel drive machines with positive traction control – ideal for increasing productivity in demanding outdoor worksites. Competitive lift speed and large platforms maximize efficiency with the handling and capacity to get to the jobsite and finish working faster.
Genie RT scissor lifts are able to traverse through uneven or rough terrain environments more efficiently. They are equipped with four-wheel drive and positive traction control for traction when you need it most. They offer up to 50% gradeability when driving on slopes.
Heavy duty fold-down guardrails and a removable rear platform railing allow increased accessibility for loading and unloading the machine in trucks, containers and other situations with limited overhead space. These features also allow easy access through doorways.
Accessories for rent
Fall Protection Clamp
Body Harness P-30mX
Platform height | 9,75 m |
Weight | 4203 kg |
Platform dimensions | 3,73x1,55 m |
Max load weight | 454 kg |
Transport height | 1,83 m |
Transport width | 1,73 m |
Transport length | 2,67 m |
Drive or power source | Diesel |
Platform length | 2,5 m |
Ground clearance | 90 mm |
Working height | 11,75 m |
Max capacity extension deck | 136 kg |
Wheel drive / steering | 4WD/2WS |
Tyres | Foam filled |
Fuel consumption | 4,45 l/h |
Platform length, extended | 3,73 m |
Platform width | 1,55 m |
Length | 2,67 m |
Width | 1,73 m |
Height | 2,55 m |
Safety harnesses are always recommended when there is a risk of falling from the platform. The use of safety harnesses is mandatory in telescopic and articulated boom lifts.
We recommend that the user wears protective shoes to reduce risks of injury.
